TimePicker Android

by

To select the time by an hour and minute, the TimePicker widget is used in Android. But it does not allow us to select the time by seconds. The FrameLayout class has a subclass android.widget.TimePicker. The FrameLayout class also has a subclass android.widget.DatePicker.

Android TimePicker Example:

activity_main.xml:

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context="MainActivity">

    <TextView
        android:id="@+id/textView1"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_above="@+id/button1"
        android:layout_alignParentLeft="true"
        android:layout_alignParentStart="true"
        android:layout_marginBottom="102dp"
        android:layout_marginLeft="30dp"
        android:layout_marginStart="30dp"
        android:text="" />

    <Button
        android:id="@+id/button1"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_alignParentBottom="true"
        android:layout_centerHorizontal="true"
        android:layout_marginBottom="20dp"
        android:text="Change to New Time" />

    <TimePicker
        android:id="@+id/timePicker"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_above="@+id/textView1"
        android:layout_centerHorizontal="true"
        android:layout_marginBottom="36dp" />
</RelativeLayout>

Activity class:(File: MainActivity.java)

package com.example.radioapp;

import android.support.v7.app.AppCompatActivity;
import android.os.Bundle;
import android.view.View;
import android.widget.Button;
import android.widget.TextView;
import android.widget.TimePicker;

public class MainActivity extends AppCompatActivity {
    TextView textview1;
    TimePicker timepicker;
    Button changetime;
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        textview1=(TextView)findViewById(R.id.textView1);
        timepicker=(TimePicker)findViewById(R.id.timePicker);
        //Uncomment the below line of code for 24 hour view
        timepicker.setIs24HourView(true);
        changetime=(Button)findViewById(R.id.button1);

        textview1.setText(getCurrentTime());

        changetime.setOnClickListener(new View.OnClickListener(){
            @Override
            public void onClick(View view) {
                textview1.setText(getCurrentTime());
            }
        });

    }

    public String getCurrentTime(){
        String currentTime="Current Time: "+timepicker.getCurrentHour()+":"+timepicker.getCurrentMinute();
        return currentTime;
    }

}

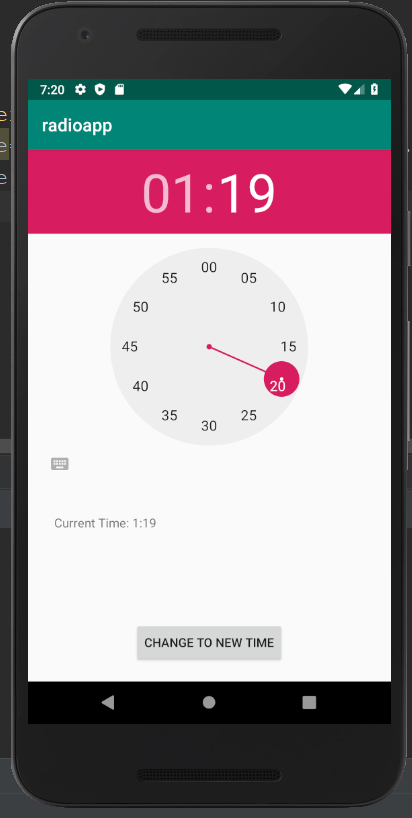

Output 1:

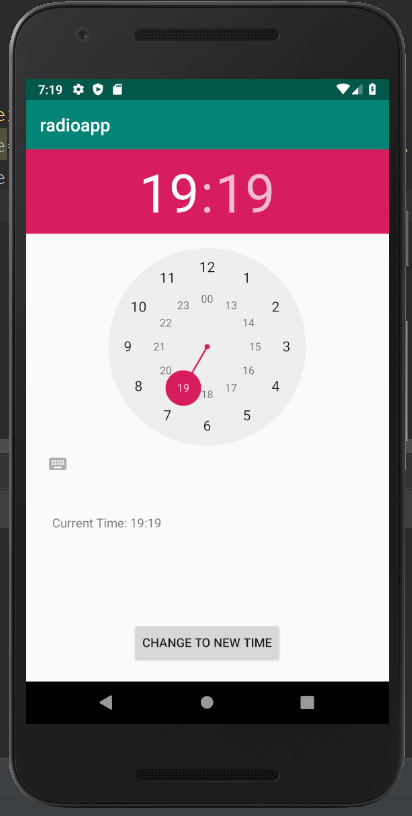

Output 2:
